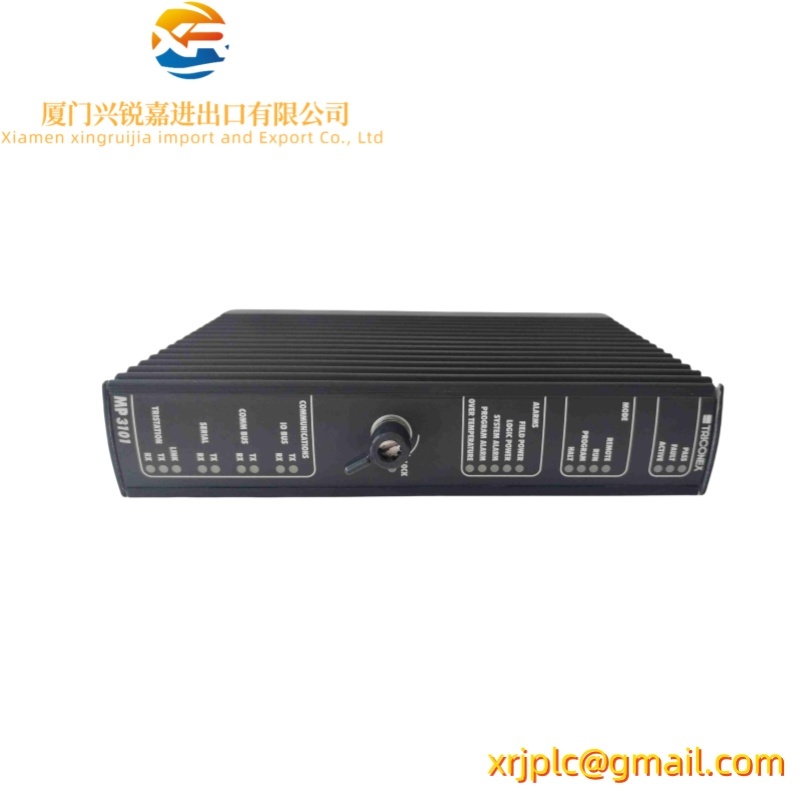

TRICONEX MP3101 3101 Triple Modular Redundant Main Processor Invensys

TRICONEX MP3101 3101 Triple Modular Redundant Main Processor Invensys

TRICONEX 3101 MP3101 Triple Modular Redundant Main Processor Invensys /All TMR Digital Input Modules sustain complete, ongoing diagnostics for each channel. Failure of any diagnostic on any channel activates the module Fault indicator, which in turn activates the chassis alarm signal. The module Fault indicator points to a channel fault, not a module failure.

Brand Name : Triconex

Model Number : MP3101

Description

The Triconex MP3101 S2 module is designed to provide reliable and secure monitoring and control capabilities for critical processes. It is widely used in industries such as oil and gas, chemical and pharmaceutical, manufacturing automation, traffic signal systems, and nuclear power.

Specifications

Input Voltage: 24V DC

Operating Temperature: -40°C to 75°C

Communication Interface: Ethernet, Modbus

Dimensions: 100 mm x 50 mm x 20 mm

Weight: 200 g

Certifications: CE, UL, RoHS

The main processor module model for Tricon v9.6 and higher versions of the system is 3008. For detailed specifications, please refer to the Tricon System Planning and Installation Guide.  Each main processor communicates independently with its I/O subsystem and executes user written control programs. During each scan, the main processor checks specified discrete variables to detect state changes known as events through sequence of events (SOE) and time synchronization. When an event occurs, the main processor saves the current variable state and timestamp in the buffer of the SOE block. If multiple Tricon systems are connected through NCM, the time synchronization function ensures a consistent time basis for effective SOE timestamps. For more information, please refer to page 70.
